From: $2,950.00
Some trailers shown may have upgraded options.

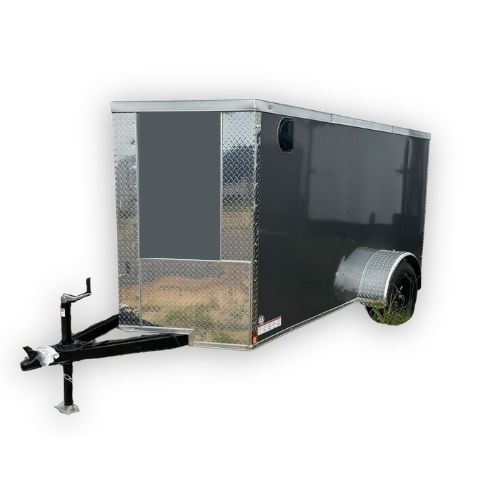

This mid-sized trailer is perfect for multi-use and durable for years! This easy-to-pull cargo trailer measures 5X10 and sits on a single axle making it easy to pull and maneuver. Comes in choices of colors and add-on options. Top-quality construction. Factory Direct!!
24″ On Center Cross Members
24″ On Center Tubing Roof Members
16″ On Center Tubing Sidewalls
.030 Aluminum Metal
Semi-Screwed Exterior
3/8″ Plywood Walls
3/4″ Plywood Floors
Interior Height 60″
ST205 15″ Radial Tires
2990 lb. Drop Leaf Spring Axles
Aluminum Fenders
Flat 4 Pigtail on Units Without Brakes
2″ Coupler
Galvalume Roof
Ramp Door with Flap
2000 lb. A-Frame
Jack with Sand Foot
E-Z Lube Hubs
V-Nose with 24″ Stone Guard
Door Hold Back
12-volt Dome Light
LED Full Light Package
Side Wall Vents
3″ Steel Tube Main Frame
SPECIFICATIONS (may change with upgrades)
Dimensions: Interior Length: 10′ 2″ Plus 2′ V Nose | Interior Width: 56″ | Interior Height: 60″ | Exterior Length: 13′ 10″ | Overall Width: 82″ | Overall Height: 79″ | Rear Door Width: 51″ | Rear Door Height: 54″ | Hitch Height: 17″ | Ground Clearance: 14″ to bottom of the frame
Tires: ST 205/75R15/5 Lug
Weight: Empty Weight: 1,160 lbs. | Payload Capacity: 1,830 lbs. | GVWR: 2,990 lbs.
Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there! An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together. When checking out to submit your quote, know that we will work with you on shipping options based on your preferences.
