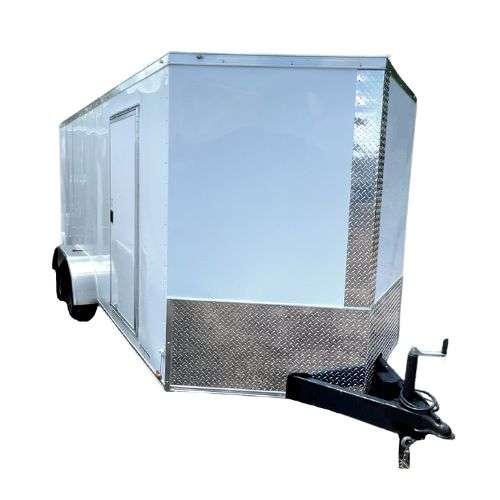

Custom 7 X 10 Tandem Axle Enclosed Trailer

From: $4,900.00

(877) 495-1777

Some trailers shown may have upgraded options.

This trailer is a great companion for many uses and this tandem axle trailer holds more weight!  This trailer even comes with electric brakes! This trailer measures 7X10 and rolls on a tandem axle for greater payload capacity. Comes in choices of colors and add-on options.

Standard Features and Specifications

Standard Features and Specifications

16″ On Center Cross Members
.024 Aluminum Metal
ST205 15″ Radial Tires
3500 lb. Drop Leaf Spring Axles with Electric Brakes
24″ On Center Tubing Roof Members
Semi-Screwed Exterior Aluminum
Jeep Fenders
7 Way Bargeman Plug on Brake Axles
16″ On Center Tubing Sidewalls
Interior Height 75″
Galvalume Roof
Ramp Door with Flap
2000 lb. A-Frame
Jack with Sand Foot
3/4″ Plywood Floors
Plastic Side Vents
Door Hold Back
2 5/16″ Coupler
3/8″ Plywood Walls
V-Nose with 24″ Stone Guard
E-Z Lube Hubs
32″ Side Door with Flush Lock
12vt Dome Light
LED Full Light Package
Includes 4″ Steel Tube Main Frame

SPECIFICATIONS (May change with upgrades)
Dimensions:  Interior Length: 10′ 2′ with V Nose  |  Interior Width: 80″  |  Interior Height: 75″  |  Overall Length: 13′ 10″  |  Overall Width: 102″  |  Overall Height: 94″  |  Ground Clearance: 14″ to bottom of the frame  |  Hitch Height: 18″

Weight:  Empty Weight: 1800 lbs.  |  Tongue Weight: 270 lbs.  |  Payload Capacity: 5200 lbs. with 3500 lb  Axle  |  Payload Capacity: 8600 lbs. with 5200 lb Axle  |  GVWR: 7000 lbs with 3500lb axle


Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there!  An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together.
