From: $4,950.00
Some trailers shown may have upgraded options.

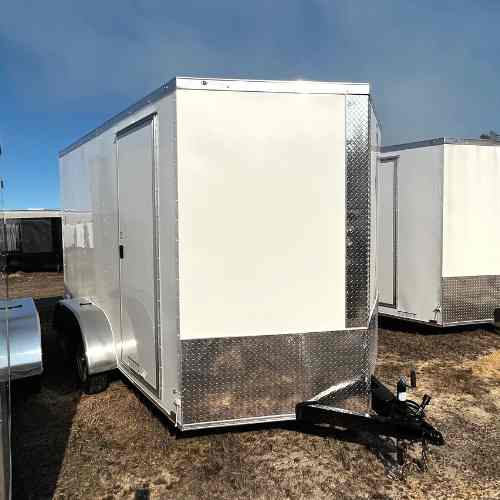

This mid-sized trailer is a great companion for many uses and this tandem axle trailer holds more weight! This trailer even comes with electric brakes! This trailer measures 7X12 and rolls on a tandem axle. Comes in choices of colors and add-on options. Top-quality construction.
16″ On Center Cross Members
24″ On Center Tubing Roof Members
16″ On Center Tubing Sidewalls
.030 Aluminum Metal
Semi-Screwed Exterior

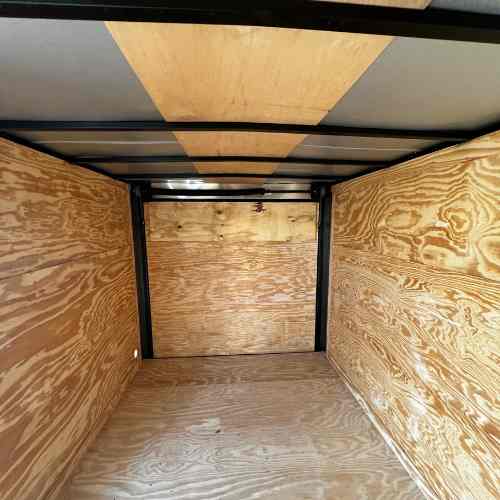

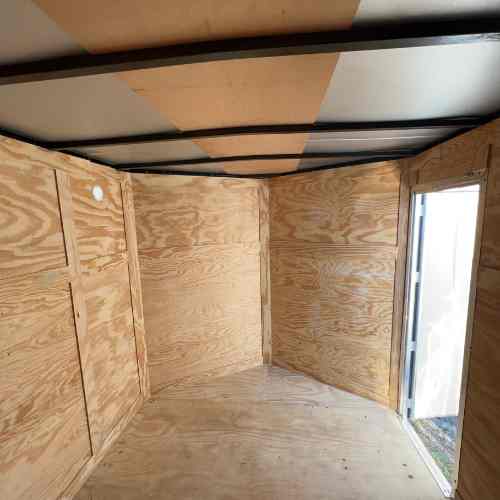

3/8″ Plywood Walls
3/4″ Plywood Floors
Interior Height 78″
ST205 15″ Radial Tires
3500 lb. Drop Leaf Spring Axles
Aluminum Fenders
Flat 4 Pigtail on Units Without Brakes
2 5/16″ Coupler
Galvalume Roof
Side Door

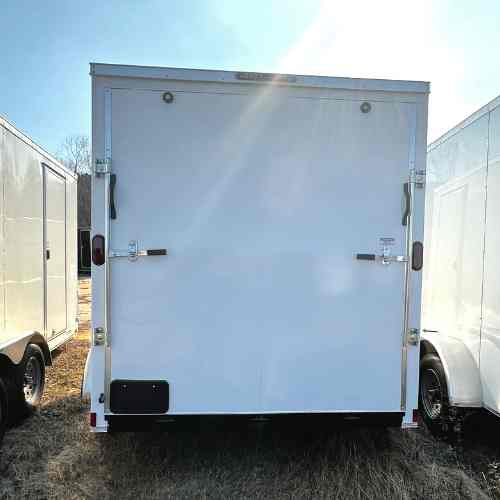

Ramp Door with Flap
2000 lb. A-Frame
Jack with Sand Foot
E-Z Lube Hubs
V-Nose with 24″ Stone Guard
Door Hold Back
12-volt Dome Light
LED Full Light Package
Side Wall Vents
4″ Steel Tube Main Frame
SPECIFICATIONS (May change with upgrades)
Dimensions: Interior Length: 12″ 2″ | Interior Width: 80″ | Interior Height: 78″ | Overall Length: 15′ 10″ | Overall Width: 102” | Overall Height: 97” | Rear Door Width: 75″ | Rear Door Height: 72″ | Ground Clearance: 18″ to bottom of the frame | Hitch Height: 18″
Tires: ST 205/75R15/5 Lug
Weight: Empty Weight” 1960 lbs. | Tongue Weight: 294 lbs. | Payload Capacity: 5040 lbs with a 3500 lb Axle | Payload Capacity: 8440 lbs with a 5200 lb Axle | GVWR: 7000lb with 23500 lb axle
Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there! An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together. When checking out to submit your quote, know that we will work with you on shipping options based on your preferences.
