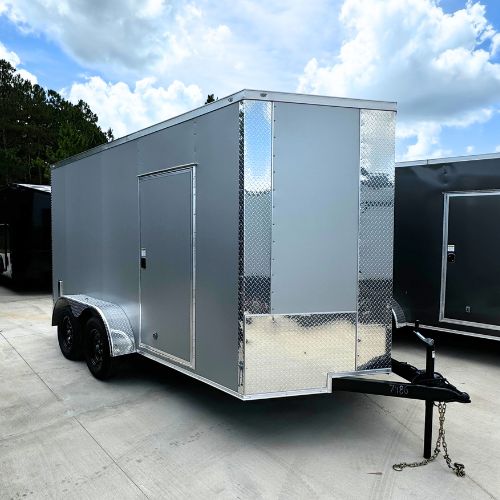

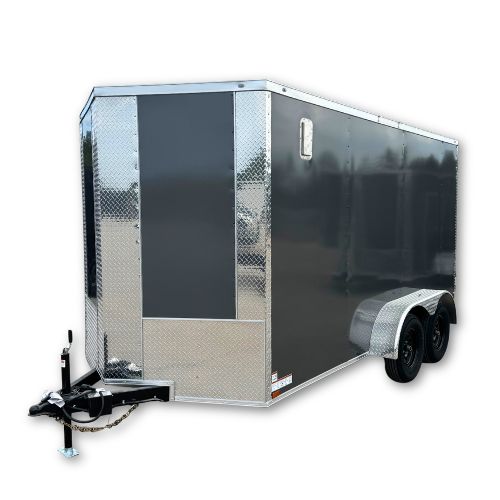

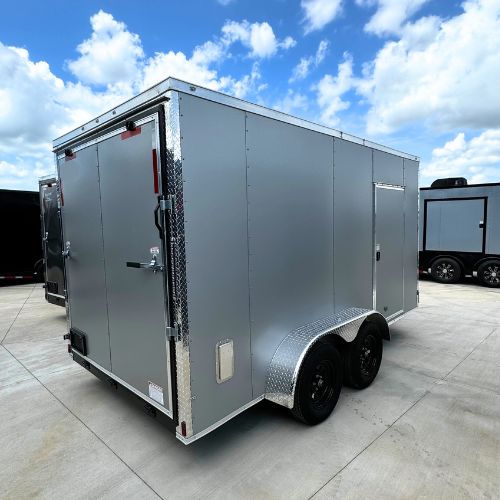

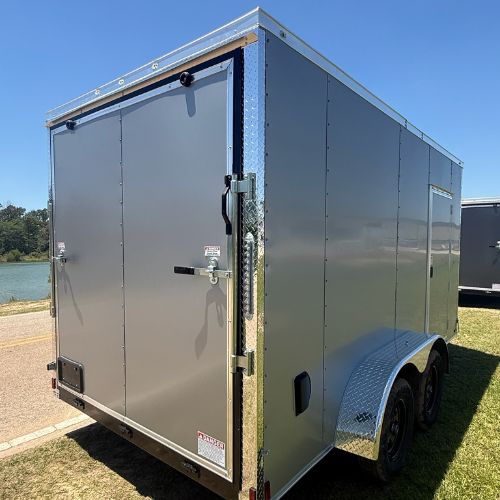

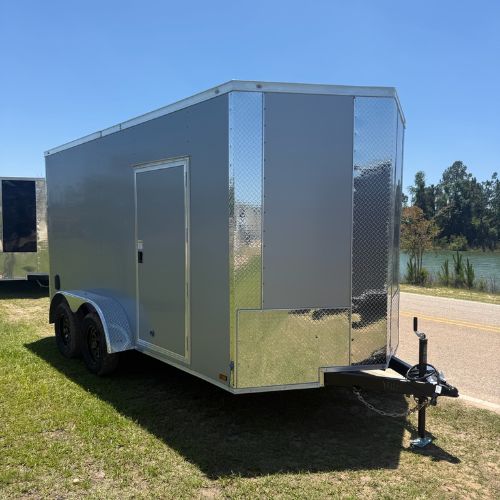

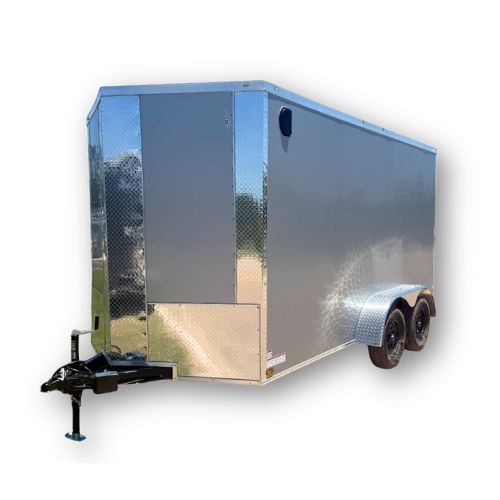

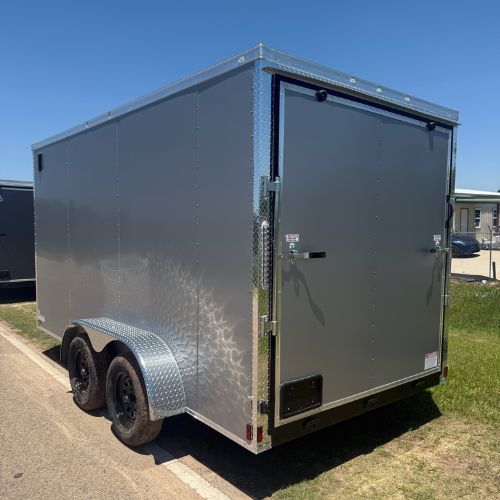

Custom 7 X 14 Tandem Axle Enclosed Trailer

From: $5,350.00

7X14 TA Gallery

(877) 495-1777

CALL NOW
SCHEDULE APPT
SCHEDULE APPT

Some trailers shown may have upgraded options.

This 14 foot long mid-sized trailer is a great companion for many uses and this tandem axle trailer holds more weight!  This trailer even comes with electric brakes! This trailer measures 7X14 and rolls on a tandem axle. Comes in choices of colors and add-on options. Top-quality construction.

Standard Features and Specifications

Standard Features and Specifications

  • 16″ On Center Cross Members
  • .024 Aluminum Metal
  • ST205 15″ Radial Tires
  • 3500 lb. Drop Leaf Spring Axles with Electric Brakes
  • 24″ On Center Tubing Roof Members
  • Semi-Screwed Exterior Aluminum
  • Jeep Fenders
  • 7 Way Bargeman Plug on Brake Axles
  • 16″ On Center Tubing Sidewalls
  • Interior Height 75″
  • Galvalume Roof, Ramp Door with Flap
  • 2000 lb. A-Frame
  • Jack with Sand Foot
  • 3/4″ Plywood Floors
  • Plastic Side Vents
  • Door Hold Back
  • 2 5/16″ Coupler
  • 3/8″ Plywood Walls
  • V-Nose w/24″ Stone guard
  • E-Z Lube Hubs
  • 32″ Side Door w/ Flush Lock
  • 12vt Dome Light, LED Full Light Package
  • Includes 4″ Steel Tube Main Frame

SPECIFICATIONS (May change with upgrades)
Dimensions:  Interior Length: 14’plus 2′ V Nose  |  Interior Width: 80″  |  Interior Height: 75″  |  Overall Length: 17′ 10″  |  Overall Width: 102″  |  Overall Height: 94″  |  Ground Clearance: 14″ to bottom of the frame  |  Hitch Height: 18″  |  Ramp Door Width: 75″  |  Rear Door Height:  69″

Weight:  Empty Weight: 2120 lbs.  |  Tongue Weight: 318 lbs.  |  Payload Capacity: 4880 lbs with a 3500 lb Axle  |  Payload Capacity: 8280 lbs with a 5200 lb Axle  |  GVWR: 7000 lbs with a 3500 lb axle
