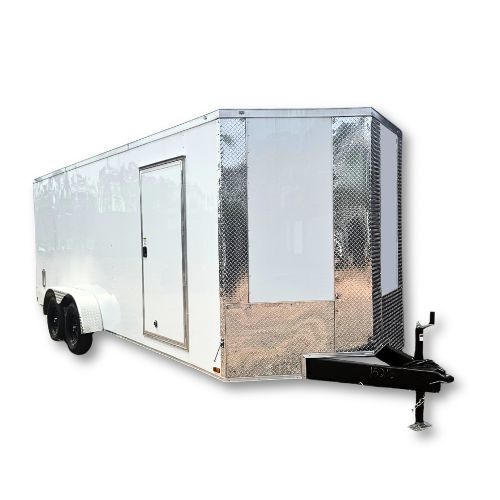

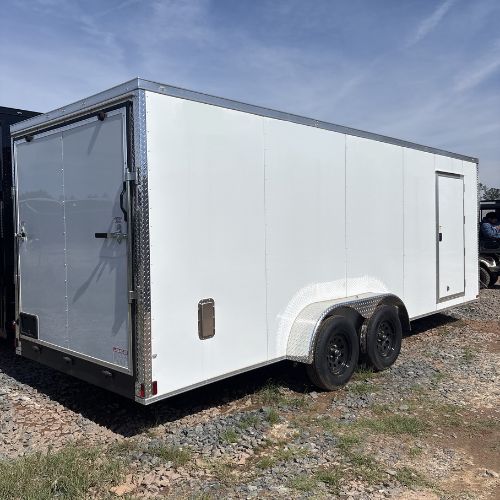

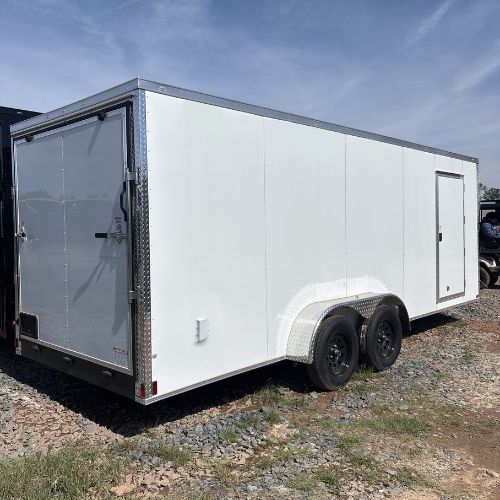

Custom 7 X 20 Tandem Axle Enclosed Trailer

From: $6,150.00

(877) 495-1777

Some trailers shown may have upgraded options.

This 20-foot trailer is long and versatile!  Its great size makes it perfect for many uses and this tandem axle trailer holds more weight!  This trailer comes with electric brakes and sits on a tandem axle. Comes in choices of colors and add-on options. Top-quality construction.

Standard Features and Specifications

Standard Features and Specifications

16″ On Center Cross Members
.024 Aluminum Metal
ST205 15″ Radial Tires
3500 lb. Drop Leaf Spring Axles with Electric Brakes
24″ On Center Tubing Roof Members
Semi-Screwed Exterior Aluminum
Jeep Fenders
7 Way Bargeman Plug on Brake Axles
16″ On Center Tubing Sidewalls
Interior Height 75″
Galvalume Roof

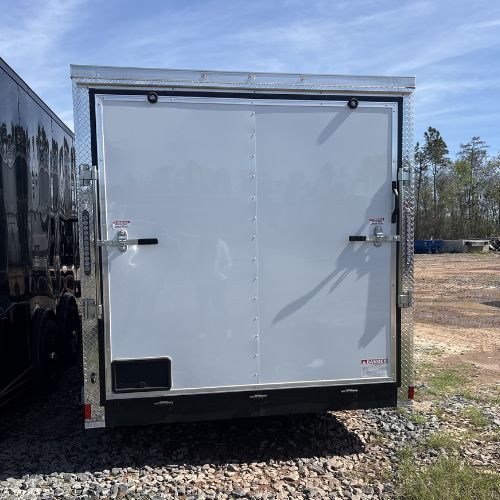

Ramp Door with Flap
2000 lb. A-Frame
Jack with Sand Foot

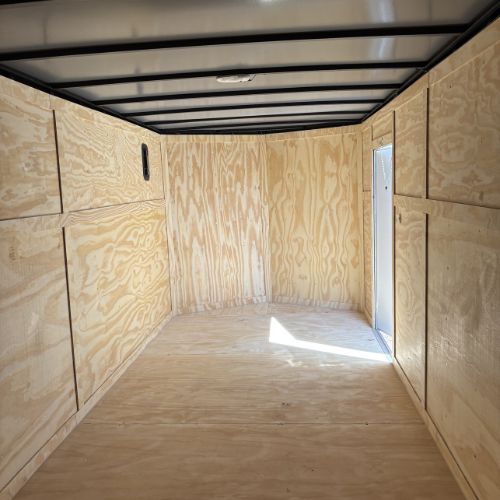

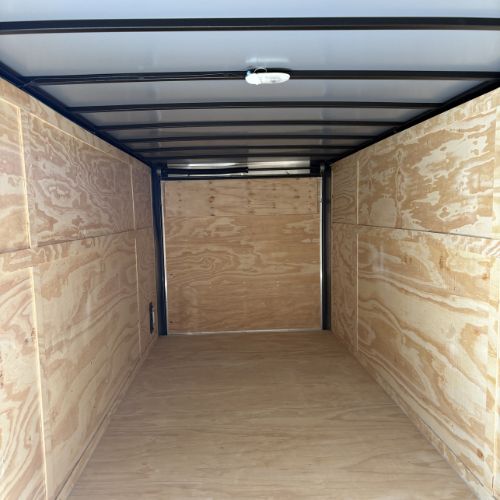

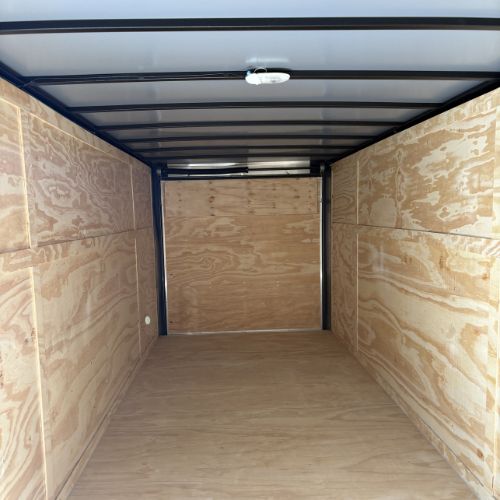

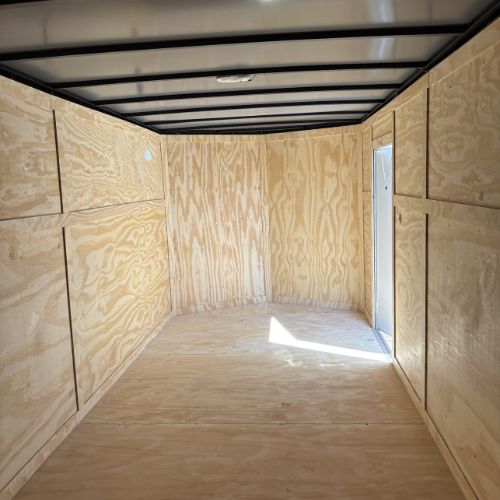

3/4″ Plywood Floors
Plastic Side Vents
Door Hold Back
2 5/16″ Coupler
3/8″ Plywood Walls
V-Nose with 24″ Stone Guard
E-Z Lube Hubs
32″ Side Door with Flush Lock
12 volt Dome Light
LED Full Light Package
Includes 6″ Steel Tube Main Frame

SPECIFICATIONS (may change with upgrades)
Dimensions:  Interior Length:  20′” Plus 2′ V Nose  |  Interior Width: 80″  |  Interior Height: 75″  |  Overall Length:  23′ 10″  |  Overall Width: 102″  |  Overall Height: 94″  |  Rear Door Height: 75″ |  Rear Door Width: 69″  |  Ground Clearance: 14″ to bottom of the frame  |  Hitch Height: 20″

Weight:  Empty Weight: 3000 lbs.  |  Tongue Weight: 396 lbs.  |  Payload Capacity: 4000 lbs with a 3500 lb Axle  |  Payload Capacity: 7400 lbs with a 5200 lb Axle  |  GVWR: 7000 lbs with 3500 lb axles


Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there!  An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together.
