From: $6,630.00
Some trailers shown may have upgraded options.

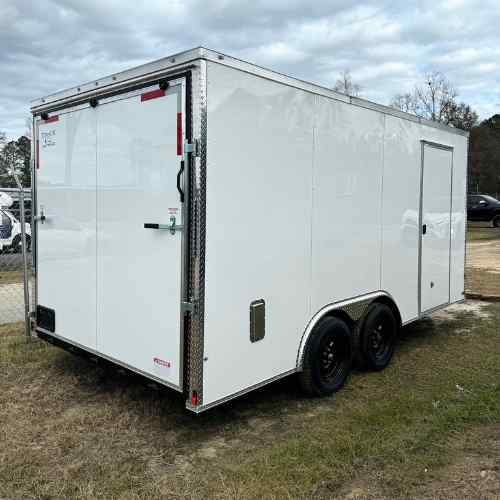

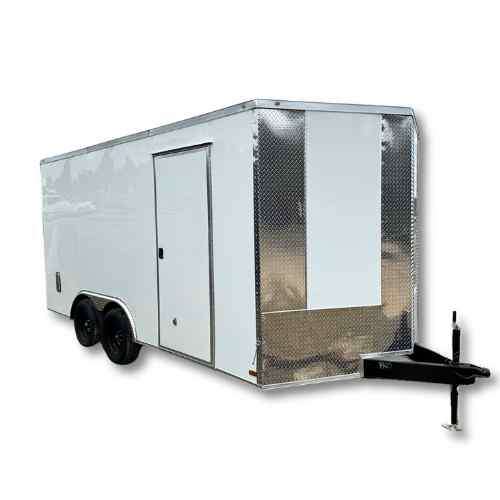

This 16-foot long enclosed cargo trailer is a great size making it perfect for many uses. The tandem axle allows you to carry more weight! This trailer comes with electric brakes and sits on a tandem axle. Comes in choices of colors and add-on options. Top-quality construction.
16″ On Center Cross Members
24″ On Center Tubing Roof Members
16″ On Center Tubing Sidewalls
.080 Polycor
Semi-Screwed Exterior
3/8″ Plywood Walls
3/4″ Plywood Floors
Interior Height 78″
ST205 15″ Radial Tires
3500 lb. Drop Leaf Spring Axles
Aluminum Fenders
7 way plug
2 5/16″ Coupler
Galvalume Roof
Side Door with ATP covered Stepwell
Heavy Duty Ramp Door with Flap
2000 lb. A-Frame
Jack with Sand Foot
E-Z Lube Hubs
V-Nose with 24″ Stone Guard
Door Hold Back
12-volt Dome Light
LED Full Light Package
Side Wall Vents
No show Beavertail
6″ Steel Tube Main Frame
SPECIFICATIONS (may change with upgrades)
Dimensions: Interior Length: 16′ Plus 2′ V Nose | Interior Width: 96″ | Interior Width Between Wheel Wells: 83″ | Overall Length: 19′ 10″ | Overall Width: 102″ | Overall Height: 97″ | Hitch Height: 20″
Ground Clearance: 14″ to bottom of the frame | Rear Ramp Door Width: 91″ | Rear Door Height: 72″
Tires: ST 205/75R15/5 Lug
Weight: Empty Weight: 2800 lbs. | Tongue Weight: 420 lbs. | Payload Capacity: 4200 lbs. with a 3500 lb. Axle | Payload Capacity: 7600 lbs with a 5200 lb. Axle | GVWR: 7000 lbs. with 3500 lb. axles
Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there! An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together. When checking out to submit your quote, know that we will work with you on shipping options based on your preferences.
