From: $7,000.00
Some trailers shown may have upgraded options.

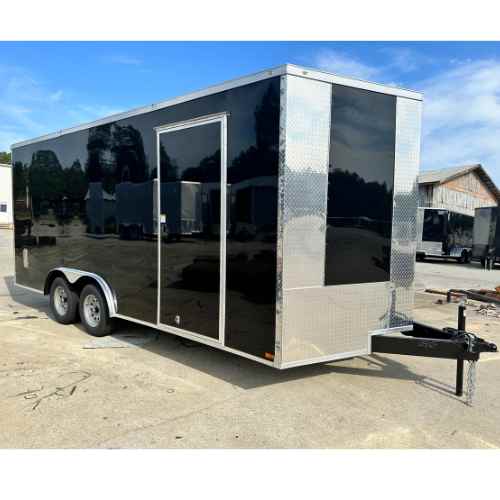

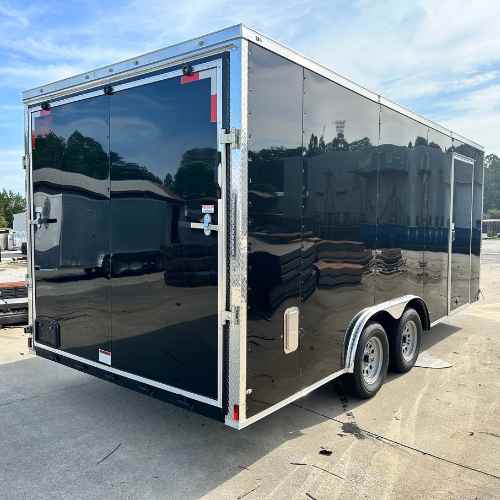

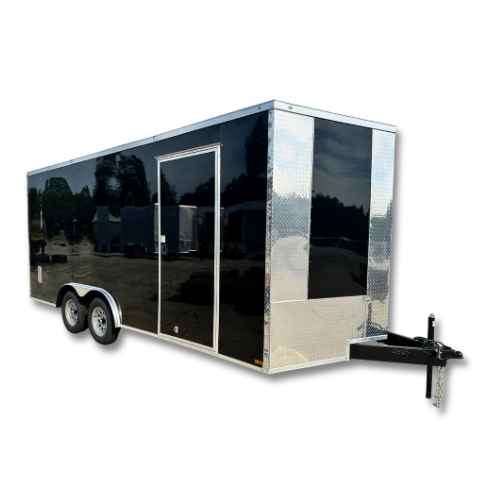

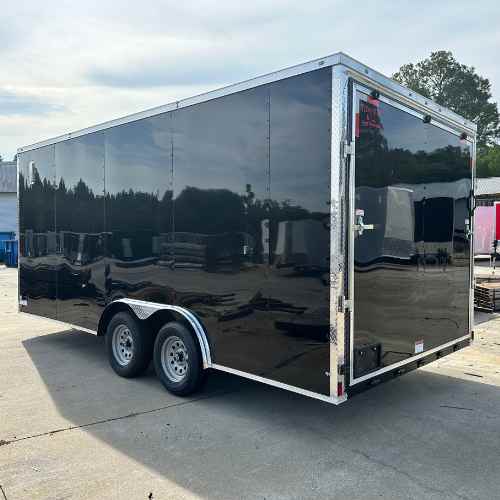

This 18-foot-long enclosed cargo trailers is a great size for many uses. The tandem axle holds more weight and comes with electric brakes! This trailer measures 8.5 X18 and sits on a tandem axle. Comes in choices of colors and add-on options. Top-quality construction.
16″ On Center Cross Members
16″ Flap on Ramp Door
ST205 15″ Radial Tires
3500 lb. Drop Leaf Spring Axles with Electric Brakes
24″ On Center Tubing Roof Members
.024 Exterior Metal, Aluminum Fenders
7 Way Bargeman Plug
16″ On Center Tubing Sidewalls
Semi-Screwed Exterior
Galvalume Roof
No Show Beavertail on 16′ and above
2000 lb. A-Frame Jack with Sand Foot
Interior Height 78″
Plastic Side Vents

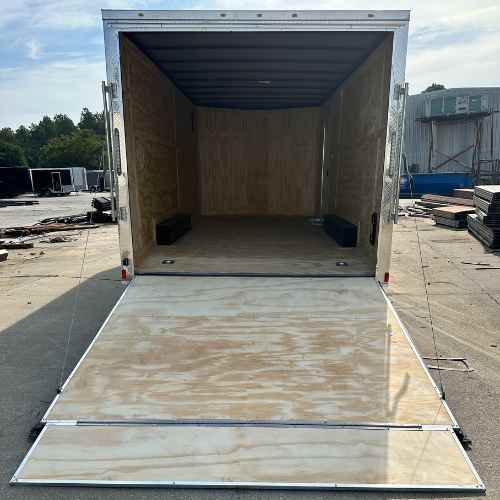

Heavy Duty Ramp Door with Flap
2 5/16″ Coupler

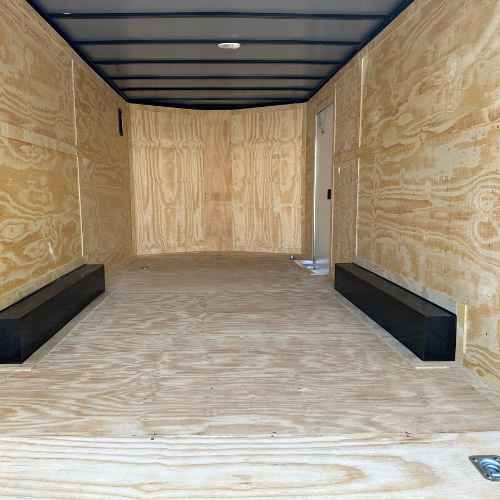

3/4″ Plywood Floors
V-Nose with 24″ Stone Guard
Door Hold Back
36″ Side Door with Flush Lock
3/8″ Plywood Walls
ATP Covered Stepwell
E-Z Lube Hubs
6″ Tube Steel Main Frame
(1) 12 volt Dome Light
LED Full Light Package
SPECIFICATIONS (may change with upgrades)
Dimensions: Interior Measurements: Interior Length: 18′ plus 2′ V Nose | Interior Width: 96″ | Interior Width Between Wheel Wells: 83″ | Interior Height: 78″ | Overall Length: 21′ 10″ | Overall Width: 102″ | Overall Height: 97″ | Rear Door Width: 91″ | Rear Door Height: 74″ | Ground Clearance: 14″ to bottom of the frame | Hitch Height: 20″
Weight: Empty Weight: 3000 lbs. | Tongue Weight: 450 lbs. | Payload Capacity: 4000 lbs with a 3500 lb Axle | Payload Capacity: 7400 lbs with a 5200 lb Axle | GVWR: 7000 lbs with 3500 lb axles
Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there! An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together.
