Custom 8.5 X 24 Tandem Axle Enclosed Trailer

From: $7,500.00

(877) 495-1777

Some trailers shown may have upgraded options.

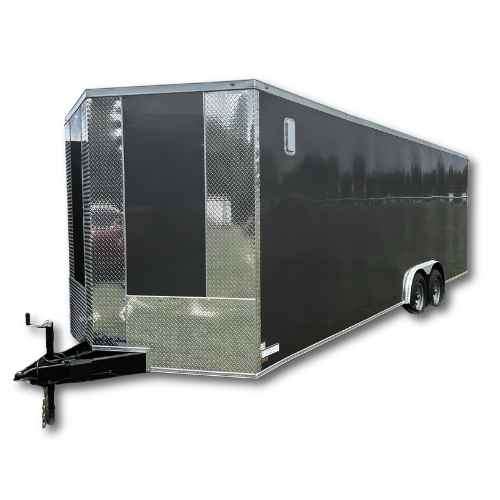

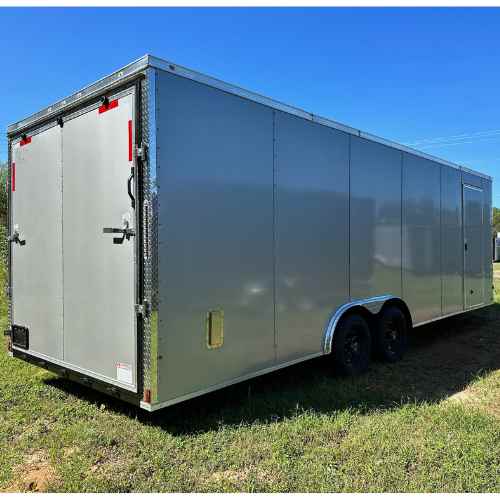

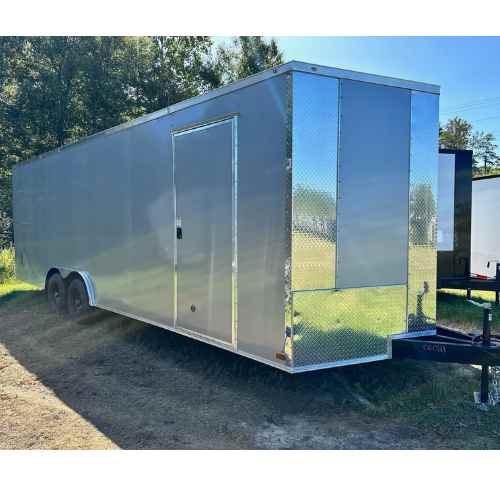

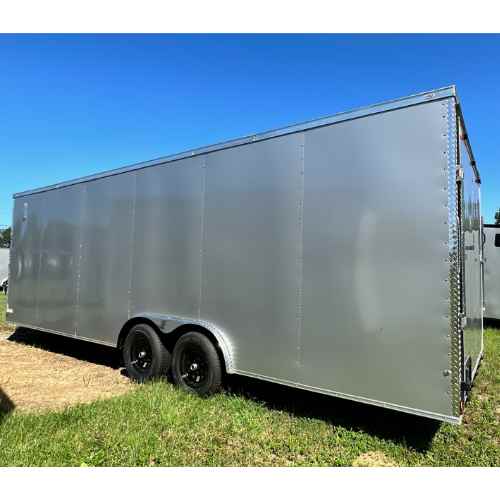

This 8.5 X 24 foot trailer is perfect for many uses and this tandem axle trailer holds more weight!  This trailer even comes with electric brakes! This trailer measures 8.5 X 24 and rolls on a tandem axle. Comes in choices of colors and add-on options. Top-quality construction.

Standard Features and Specifications

Standard Features and Specifications

16″ On Center Cross Members
16″ Flap on Ramp Door
ST205 15″ Radial Tires
3500 lb. Drop Leaf Spring Axles with Electric Brakes
24″ On Center Tubing Roof Members
.024 Exterior Metal, Aluminum Fenders
7 Way Bargeman Plug
16″ On Center Tubing Sidewalls
Semi-Screwed Exterior
Galvalume Roof
No Show Beavertail on 16′ and above
2000 lb. A-Frame Jack with Sand Foot
Interior Height 78″
Plastic Side Vents
Heavy Duty Ramp Door with Flap
2 5/16″ Coupler
3/4″ Plywood Floors
V-Nose with 24″ Stone Guard
Door Hold Back
36″ Side Door with Flush Lock
3/8″ Plywood Walls
ATP Covered Stepwell
E-Z Lube Hubs
6″ Tube Steel Main Frame
(1) 12 volt Dome Light
LED Full Light Package

SPECIFICATIONS (may change with upgrades)
Dimensions:  Interior Length: 24′ Plus 2′ V Nose  |  Interior Width: 96″  |  Interior Width Between Wheel Wells: 83″  |  Interior Height: 78″  |  Overall Length: 27′ 10″  |  Overall Width: 102″  |  Overall Height: 97″  |  Rear Door Width: 91″  |  Rear Door Height: 74″  |  Hitch Height: 20″  |  Ground Clearance: 14″ to bottom of the frame

Weight:  Empty Weight:  3600 lbs.  |  Tongue Weight: 540 lbs.  |  Payload Capacity: 3600 lbs with 3500 lb Axles  |  Payload Capacity: 6600 lbs with 5200 lb Axles  |  GVWR: 7000 lbs with 3500 lb axles


Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there!  An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together.
