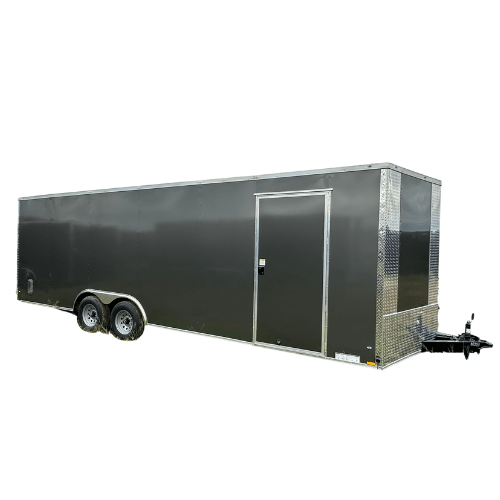

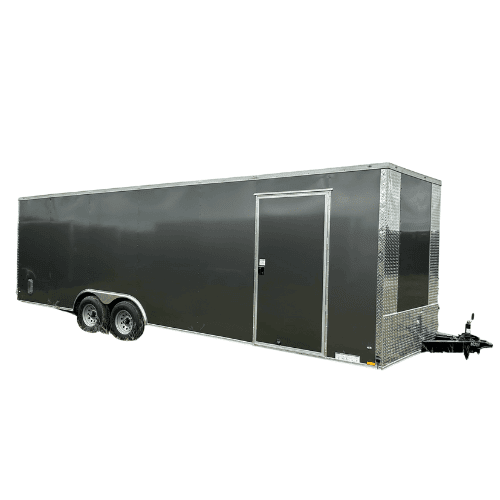

Custom 8.5 X 28 Tandem Axle Enclosed Trailer

From: $9,550.00

(877) 495-1777

Some trailers shown may have upgraded options.

Need a big cargo trailer? Try our widest trailer for more payload!  This is our largest width and a length that is a great trailer for many uses.  This tandem axle trailer holds more payload than our other sizes!  Comes in choices of colors and add-on options. Top-quality construction.  We sell Factory Direct!


Standard Features and Specifications

Standard Features and Specifications

(4) 5000 lb. D-Rings
16″ On Center Cross Members
16″ Flap On Ramp Door
ST225 15″ Radial Tires
5200 lb. Drop Leaf Spring Axles with Electric Brakes
24″ On Center Tubing Roof Members
.024 Exterior Metal
Aluminum Fenders
7 Way Bargeman Plug
16″ On Center Tubing Sidewalls
Semi-Screwed Exterior
Galvalume Roof
2000 lb. A-Frame Jack with Sand Foot
Interior Height 78″
Plastic Side Vents

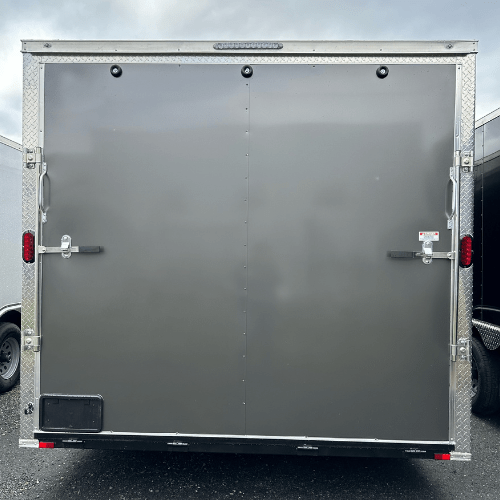

Heavy Duty Ramp Door with Flap
2 5/16″ Coupler

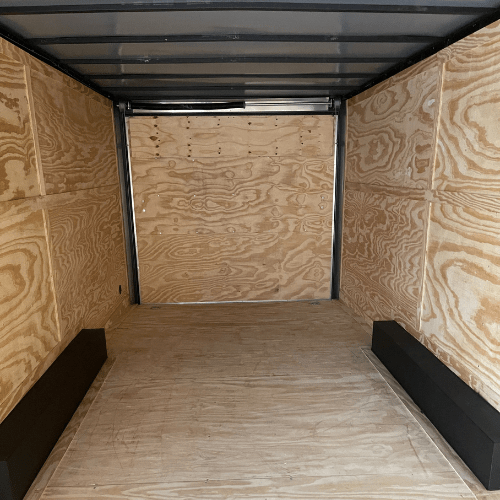

3/4″ Plywood Floors

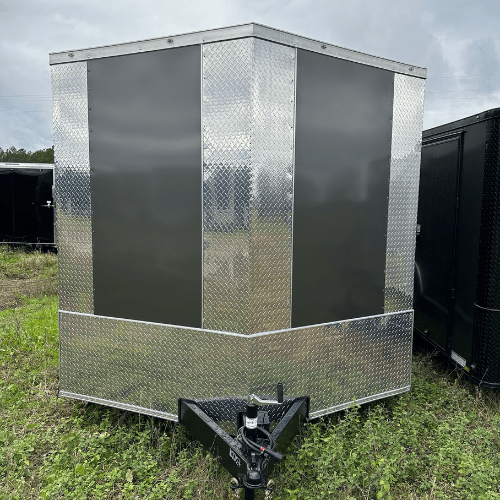

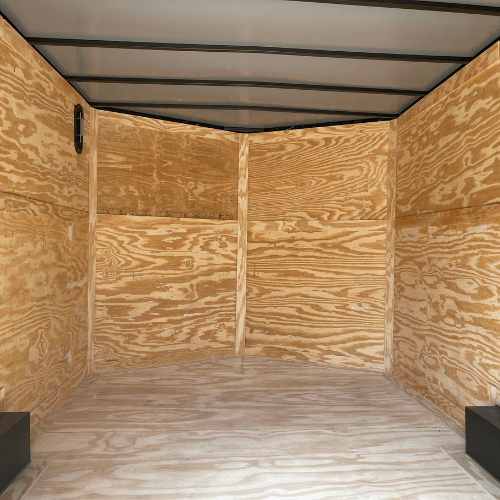

V-Nose with 24″ Stone Guard
Door Hold Back
36″ Side Door with Flush Lock
3/8″ Plywood Walls
ATP Covered Stepwell
E-Z Lube Hubs
8″ Tube Steel Main Frame
(1) 12v Dome Light
LED Full Light Package

SPECIFICATIONS (may change with upgrades)
Dimensions:  Interior Length: 28′ Plus 2′ V Nose  |  Interior Width: 96″  |  Interior Width Between Wheel Wells:  83″  |  Interior Height: 78″  |  Ground Clearance: 20″ to bottom of the frame  |  Overall Length: 31′ 10″  |  Overall Width: 102″  |  Overall Height: 97″  |  Rear Door Width: 91″  |  Rear Door Height: 74″

Weight:  Empty Weight:  4200 lbs.  |  Tongue Weight: 400 lbs.  |  Payload Capacity: 5790 lbs with a 5200 lb Axle  |  Payload Capacity: 9800 lbs with a 7000 lb Axle  |  GVWR: 9,990 lbs with 5200 lb Axle


Navigate through our many options and start designing your custom trailer! When you have added your options, submit your trailer design in the Checkout…we will take it from there!  An experienced sales team member will contact you to carefully review your choices with you to make sure everything works together.
