(4) 5000 lb. D-Rings
16″ On Center Cross Members
16″ Flap On Ramp Door
ST225 15″ Radial Tires
5200 lb. Drop Leaf Spring Axles with Electric Brakes
24″ On Center Tubing Roof Members
.024 Exterior Metal
Aluminum Fenders
7 Way Bargeman Plug
16″ On Center Tubing Sidewalls
Semi-Screwed Exterior
Galvalume Roof
2000 lb. A-Frame Jack with Sand Foot
Interior Height 78″
Plastic Side Vents

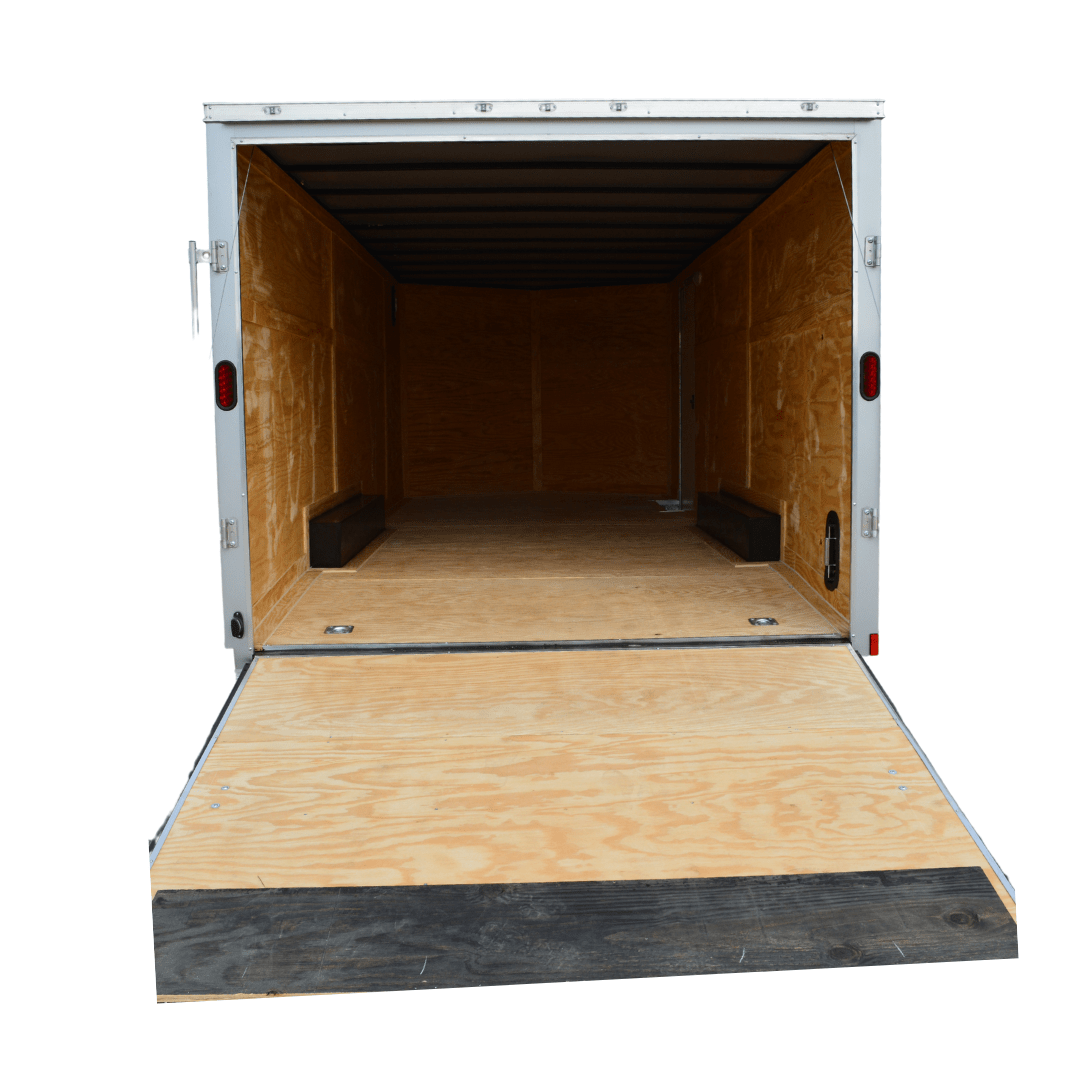

Heavy Duty Ramp Door with Flap
2 5/16″ Coupler
3/4″ Plywood Floors
V-Nose with 24″ Stone Guard
Door Hold Back
36″ Side Door with Flush Lock
3/8″ Plywood Walls
ATP Covered Stepwell
E-Z Lube Hubs
8″ Tube Steel Main Frame
(1) 12v Dome Light
LED Full Light Package

SPECIFICATIONS (may change with upgrades)
Dimensions:  Interior Length: 32″ Plus 2′ V Nose  |  Interior Width: 96″  |  Interior Width Between Wheel Wells: 83″  |  Interior Height: 78″  |  Overall Length: 35′ 10″  |  Overall Width: 102″  |  Overall Height: 97″  |  Hitch Height: 20″  |  Rear Door Width: 91″  |  Rear Door Height: 74″  |  Ground Clearance: 14″ to bottom of the frame

Weight:  Empty Weight:  4600 lbs  |  Tongue Weight: 690 lbs.  |  Payload Capacity: 5390 lbs with a 5200 lb Axle  |  Payload Capacity: 9400 lbs with a 7000 lb Axle  |  GVWR:  9.990 with 7000 lb Axle
